DAZA/DNWA: Audi RS3 8P/8V, Audi TTRS 8J/8S, Audi RS Q3, VW Golf R MK7, SEAT Leon Cupra R, Skoda Octavia vRS
DJH/DJS: Audi RS3 Sportback and Sedan (8V/8V.2), Audi TTRS (8S)

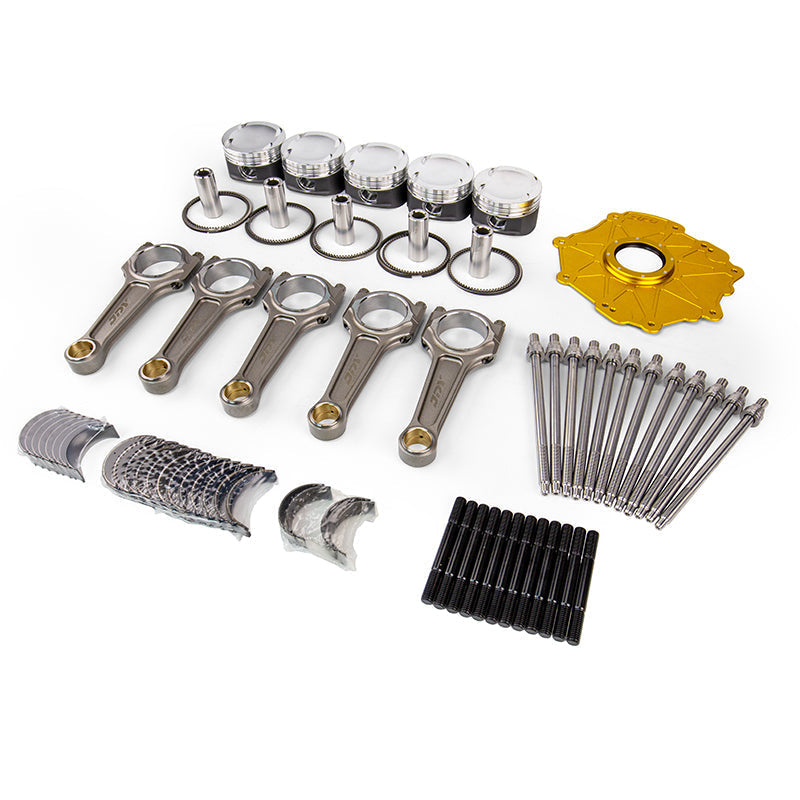

The Ultimate block-building combo for DAZA/DNWA,?etc,?this kit includes everything you need to build the engine block for High boost (power output)
Including:

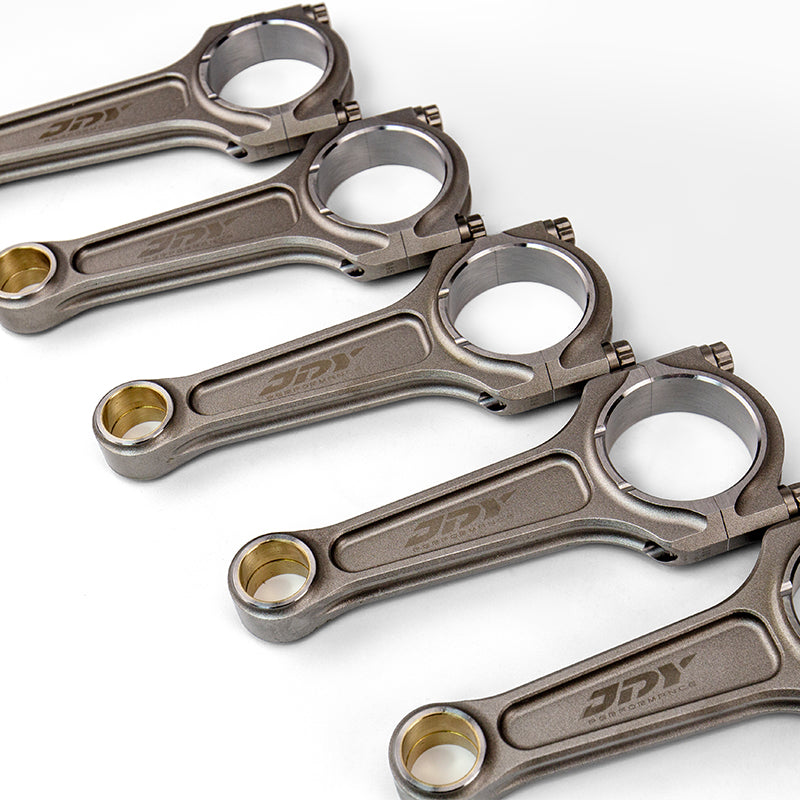

-JDY iBeam Conrod with ARP2000 Bolts
i-Beam steel connecting rods 2.5L TFSI engines with chain (EA888) are designed for an extreme?performance (275HP/Per CYL). This will increase the performance of your Audi TTRS/RS3.?
In order to optimally lubricate the piston pins and protect the engine parts from abrasion, the connecting rods come with an additional drilling ?All JDY connecting rods are precisely angled and tested. Included are of course 3/8" ARP 2000 expansion bolts and the assembly paste. There are a few things to keep in mind during assembly, so we've summarized some information on?how to tighten the connecting rod bolts correctly?for you!
ARP Age 625+ bolts are?available as optional.??

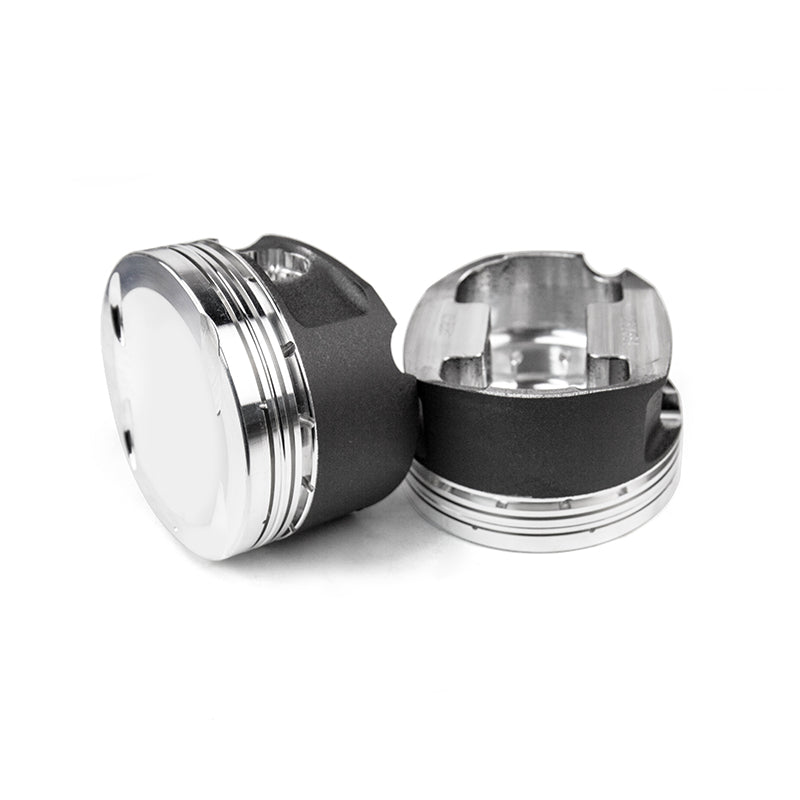

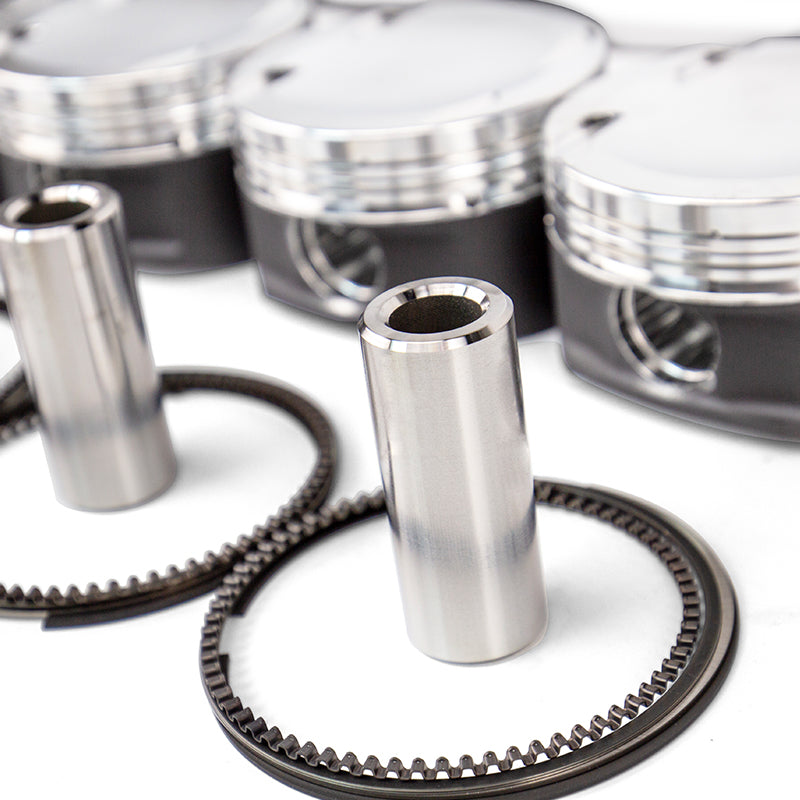

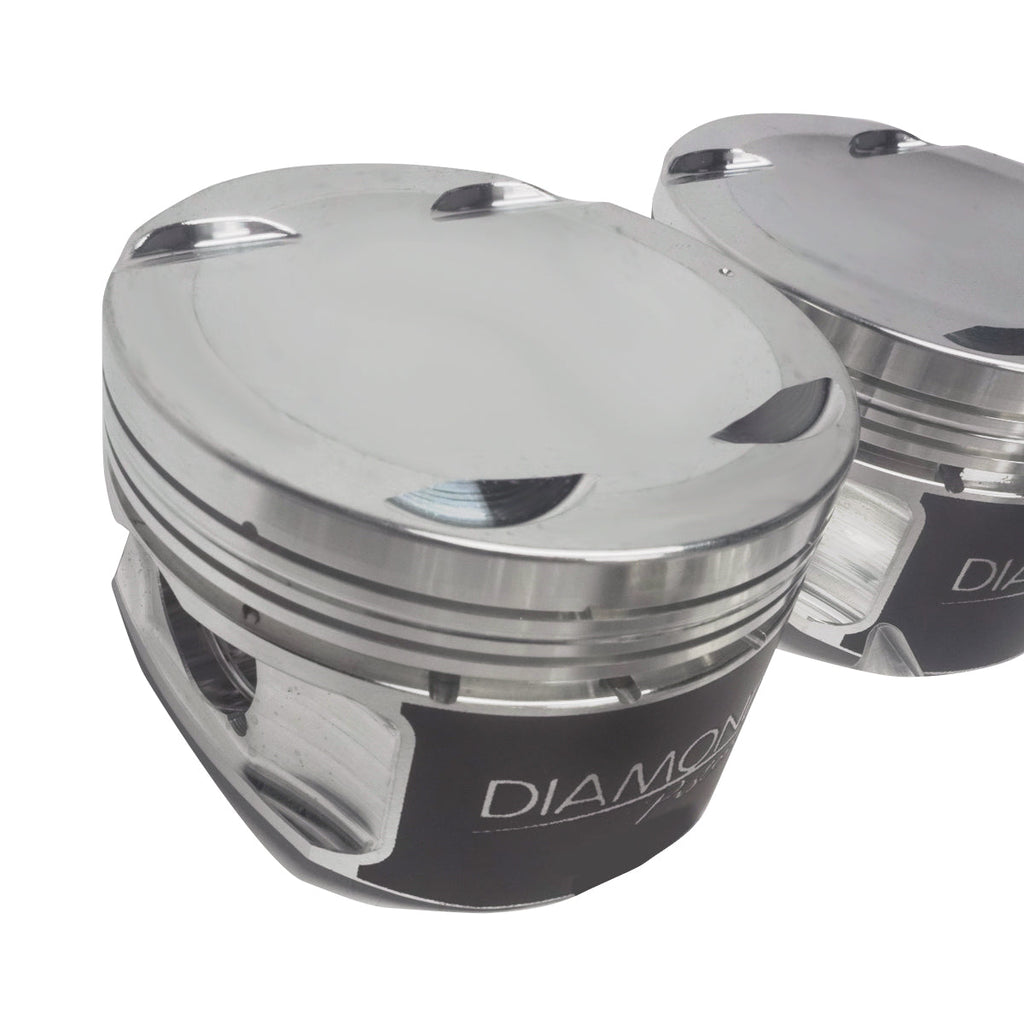

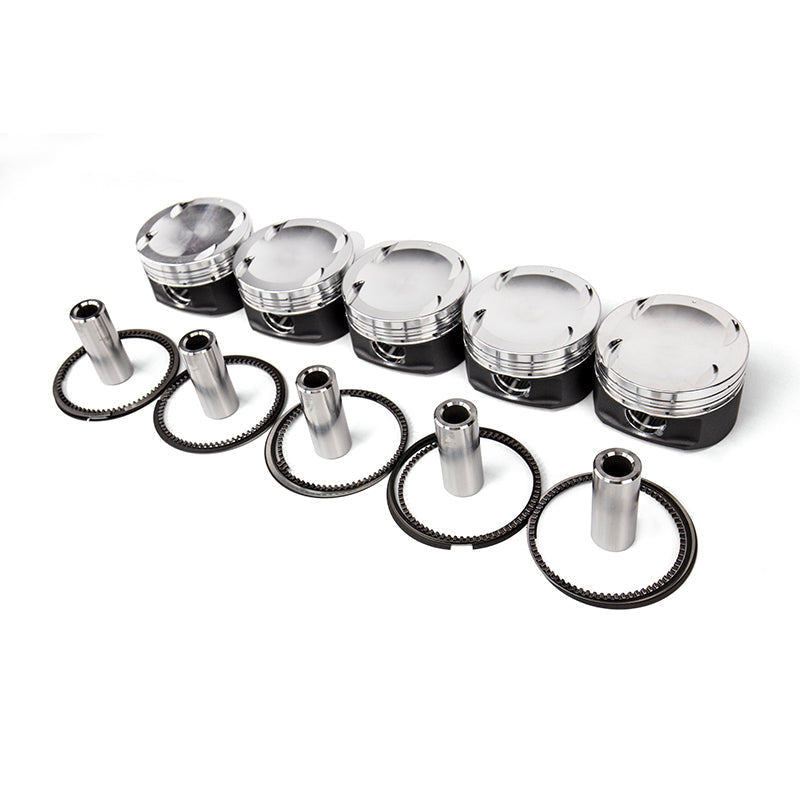

-Diamond Pistons
The Audi 2.5L TFSI TT-RS pistons are made by Diamond Racing USA. They are built as tough as can be to withstand the vigorous demands of racing. No matter how much boost pressure you are running or how high you are revving, these pistons will take it and ask for more! Check the individual features for your application below.
Product Features and Design
2618 Low-silicon / High expansion alloy for High HP/Boost applications
Round skirt design with a bottom reinforcing band
3D under-crown milling to ensure minimal weight without compromising strength.
3D milling on piston crowns for ready-to-install finish
Oversize valve pockets for larger than stock valves and clip cuts on the edge of the pistons
Window milling reduces the piston's overall weight while maintaining its strength and structural integrity

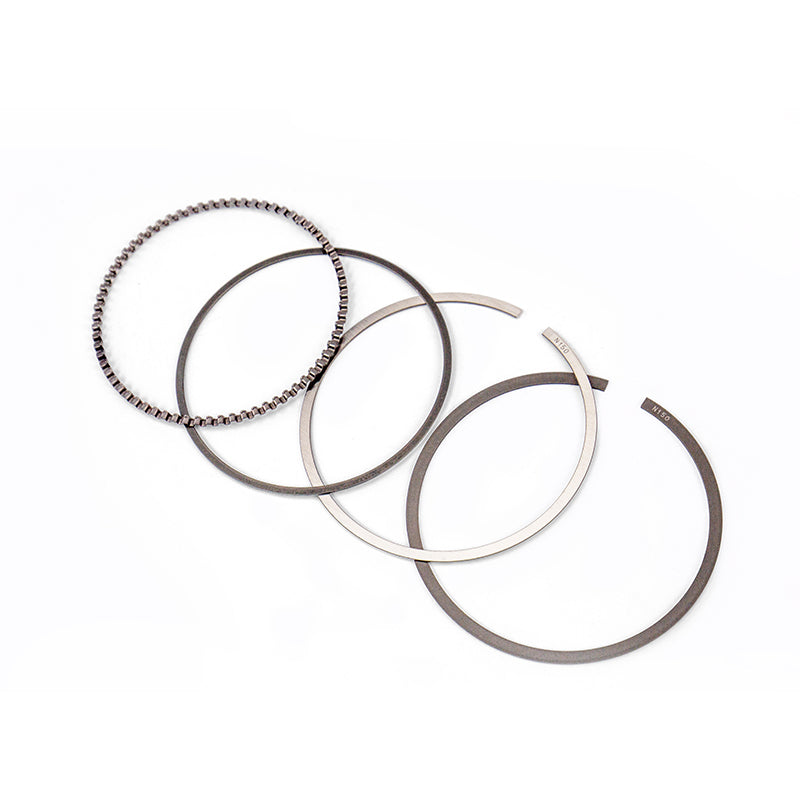

Lateral gas ports for better ring seal
Offset pins for quiet operation
Molly Skirt coating for friction minimization and skirt wear protection

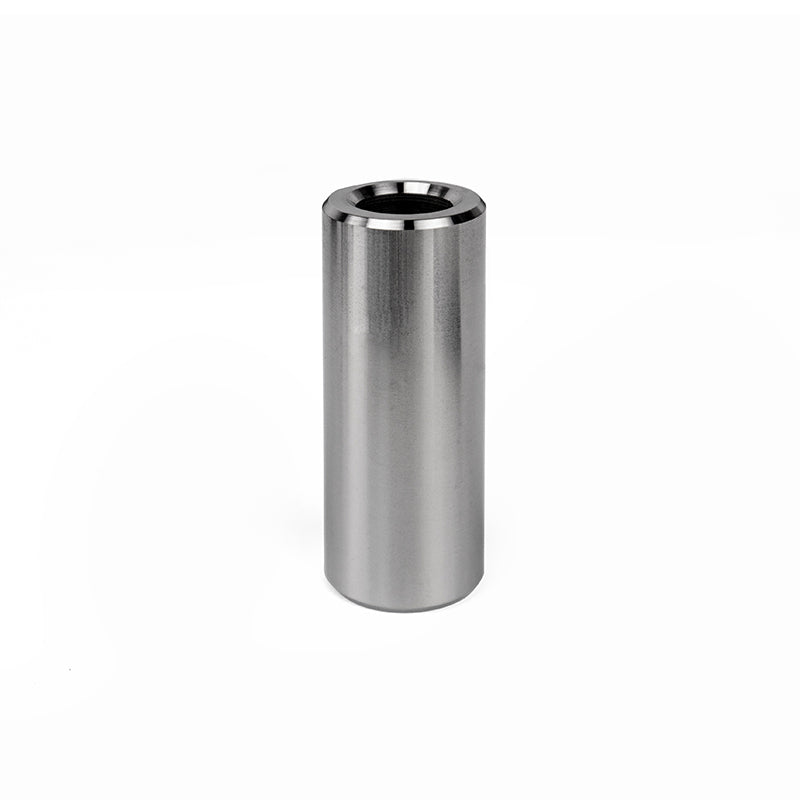

Premium 8620 series pins from 1018 mild steel
Tool steel H-13 alloy wrist pins are available as an upgrade.?

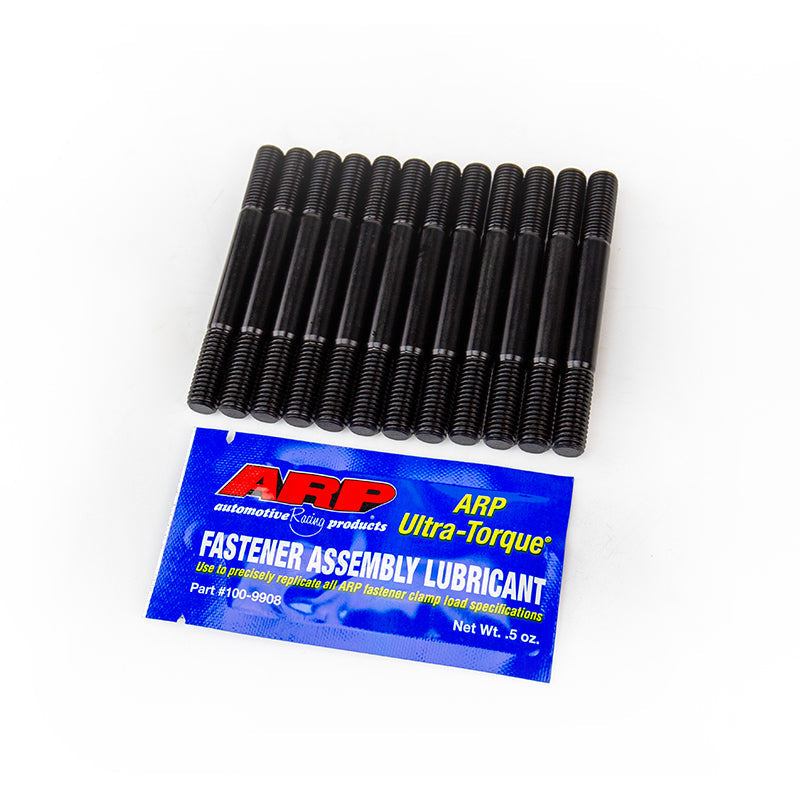

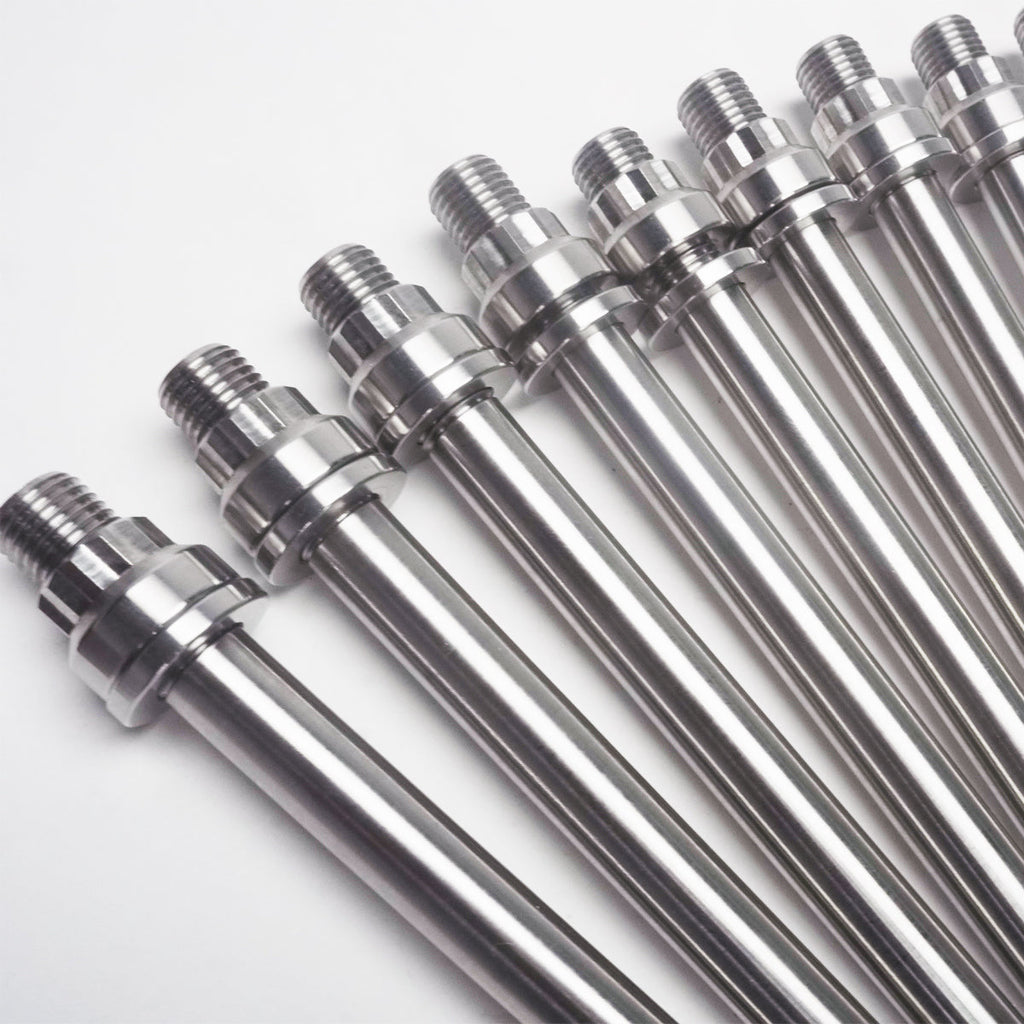

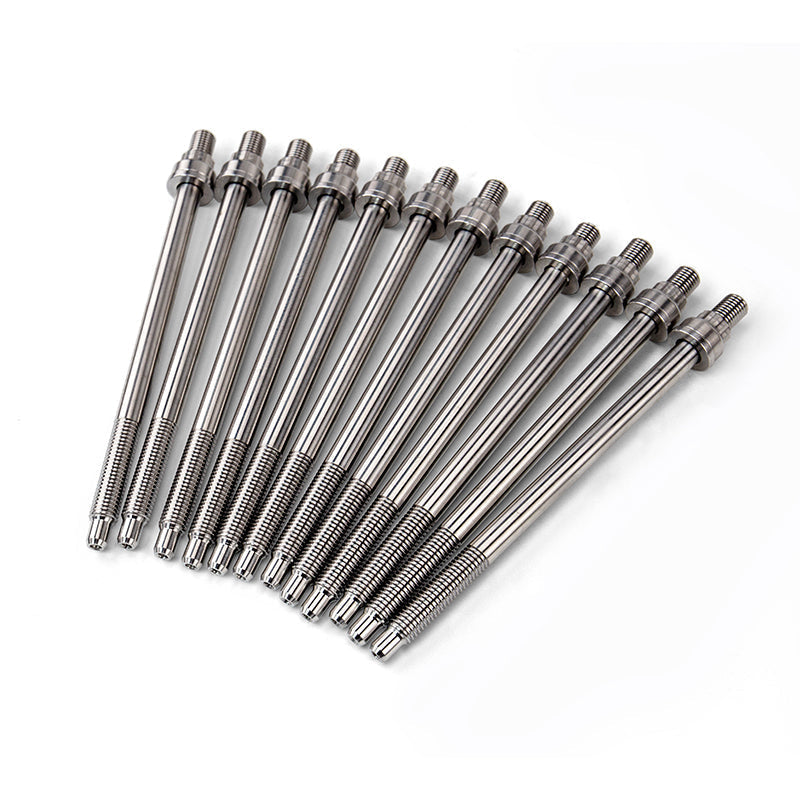

Note:?The nuts and washers included in this kit still utilize premium grade 8740 alloy as only the stud is subjected to increased pressure Each kit includes a complete set of L19 head studs, nuts, and ARP Assembly Lubricant.
-ACL Connecting Rod & Crank Bearings
Racing bearing, ACL Race
Extra coated
Extra bore for the piston pin
PN: 6M5577H-STD 5M5562H-STD

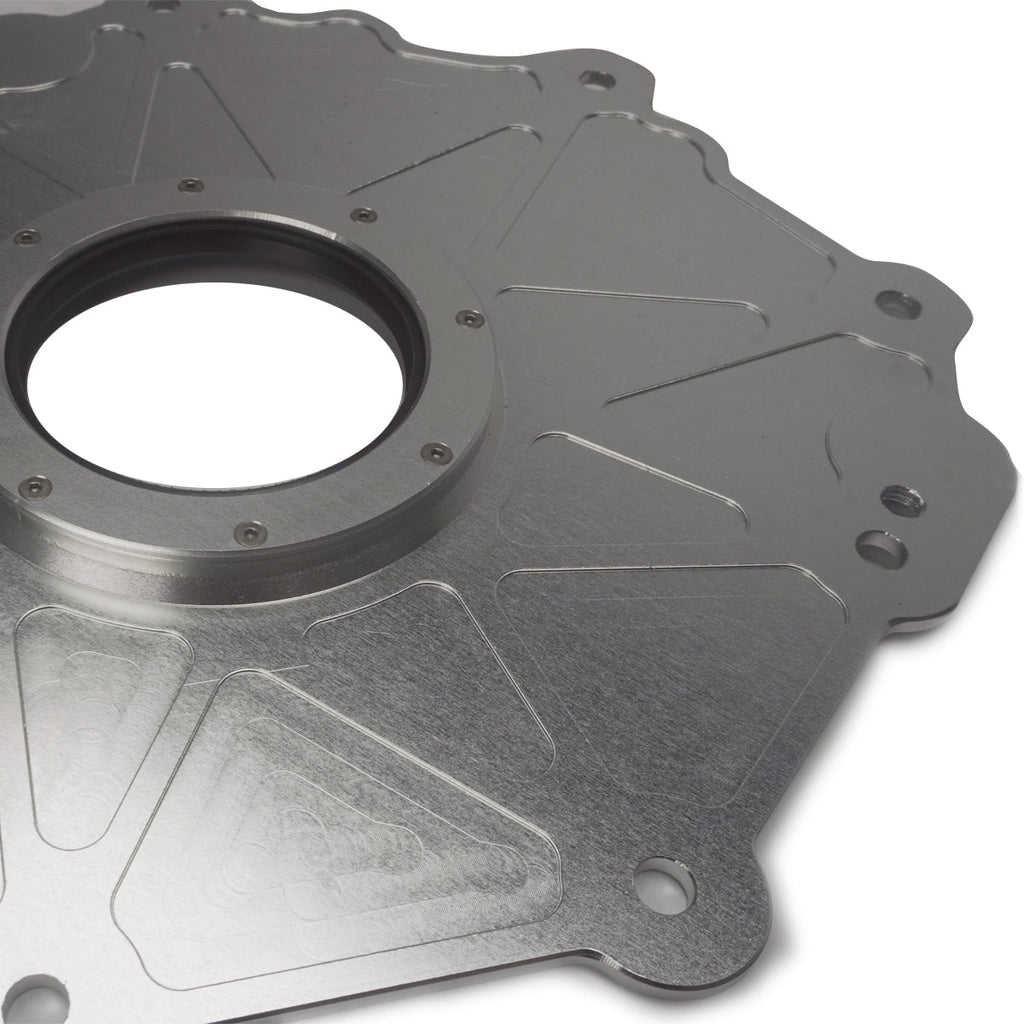

-JDY?Crankshaft Seal Billet
Billet crankshaft seal for EA855 EVO engines, to avoid oil leakage OEM seal
Features:
-Reinforced CFW double lip?Radial Shaft Seal - Simmerring?
-CNC billet parts?
-Titanium seal cover bolts
-Extra seal cover for a better seal
-CFW double lip shaaft seal
?
*NOT Includes Main Studs.
Unsure if this part fits your car?
All fitment information can be found in our product descriptions. If your car is mentioned, fitment is guaranteed as long as the associated components are not modified or damaged.
If this information is missing or you don't see your car listed, please ensure to contact us before making your purchase.
