Unlock the true potential of your EA888 engine. Designed for high-boost applications and big-turbo builds, the JDY Billet Intake Manifold is the ultimate upgrade for enthusiasts who demand maximum airflow, structural integrity, and a premium engine bay aesthetic.
Product Overview

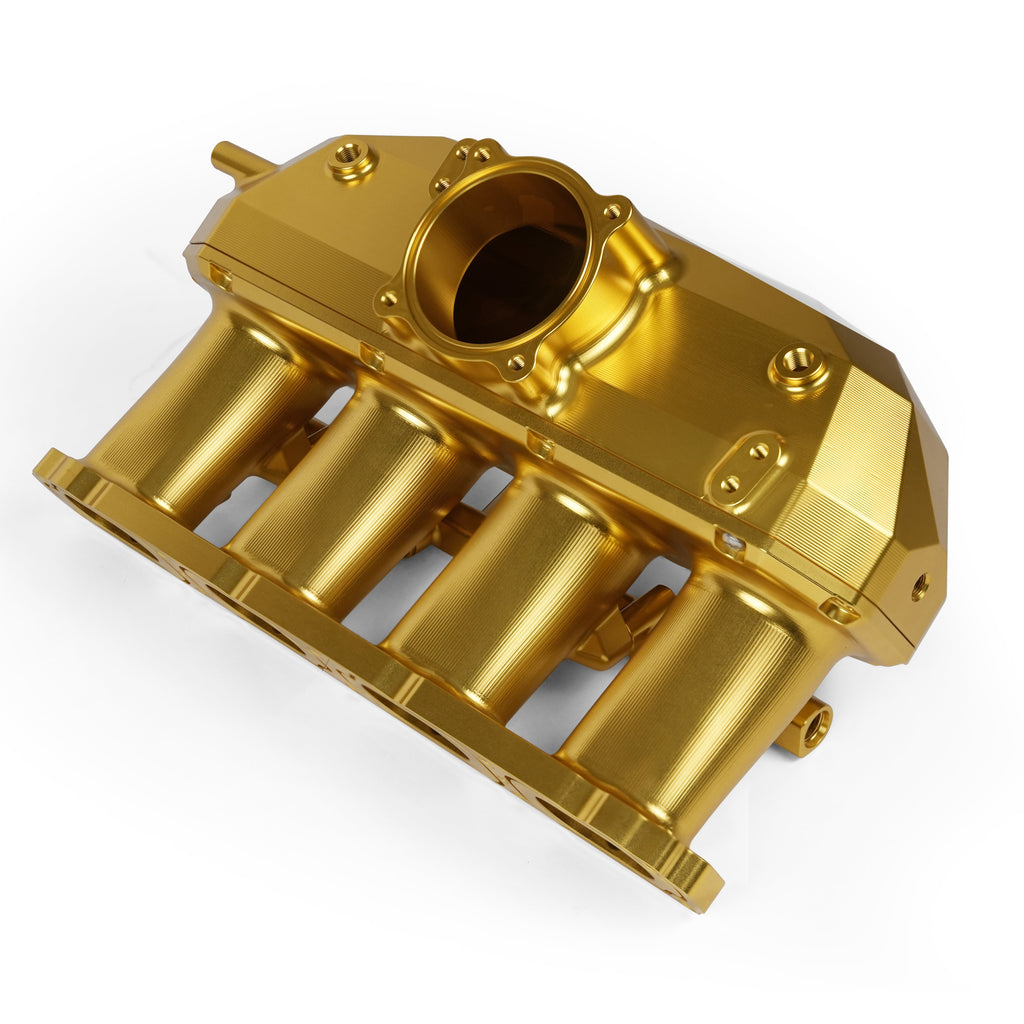

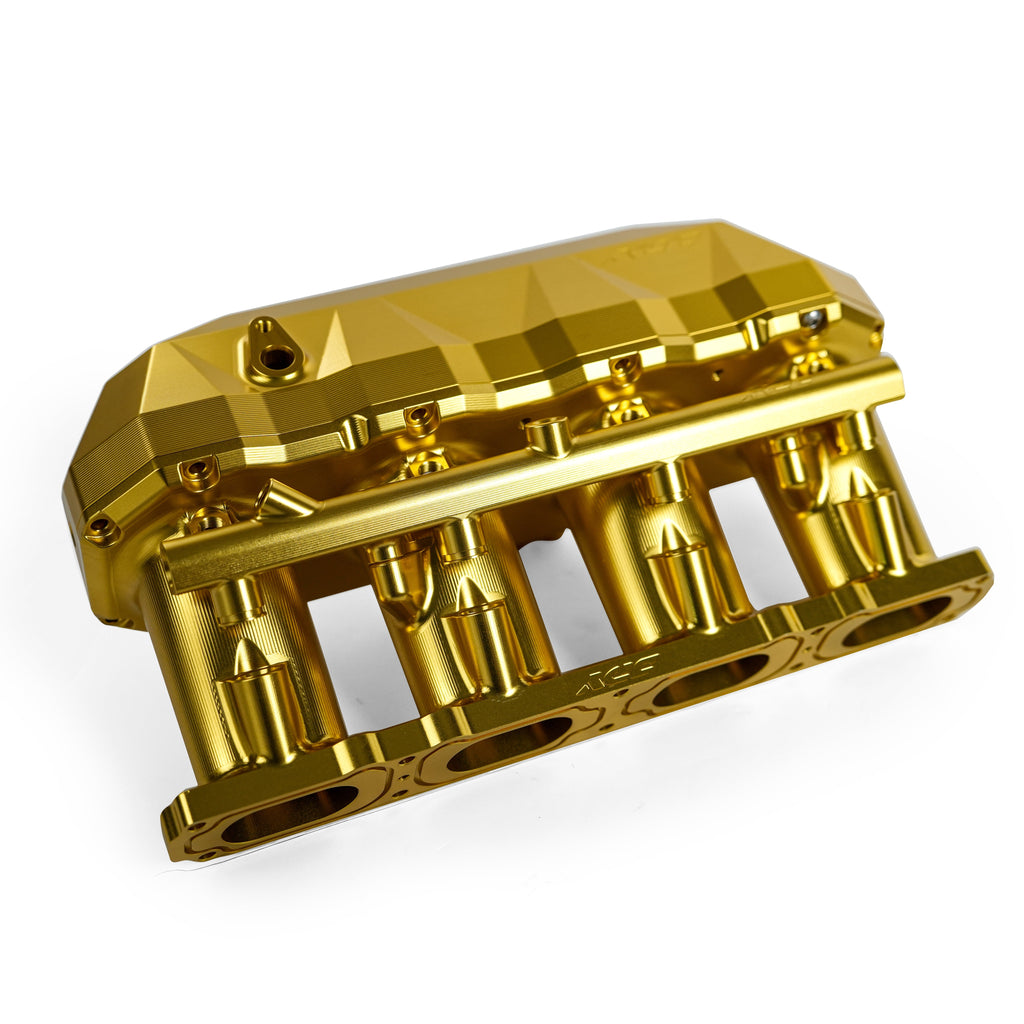

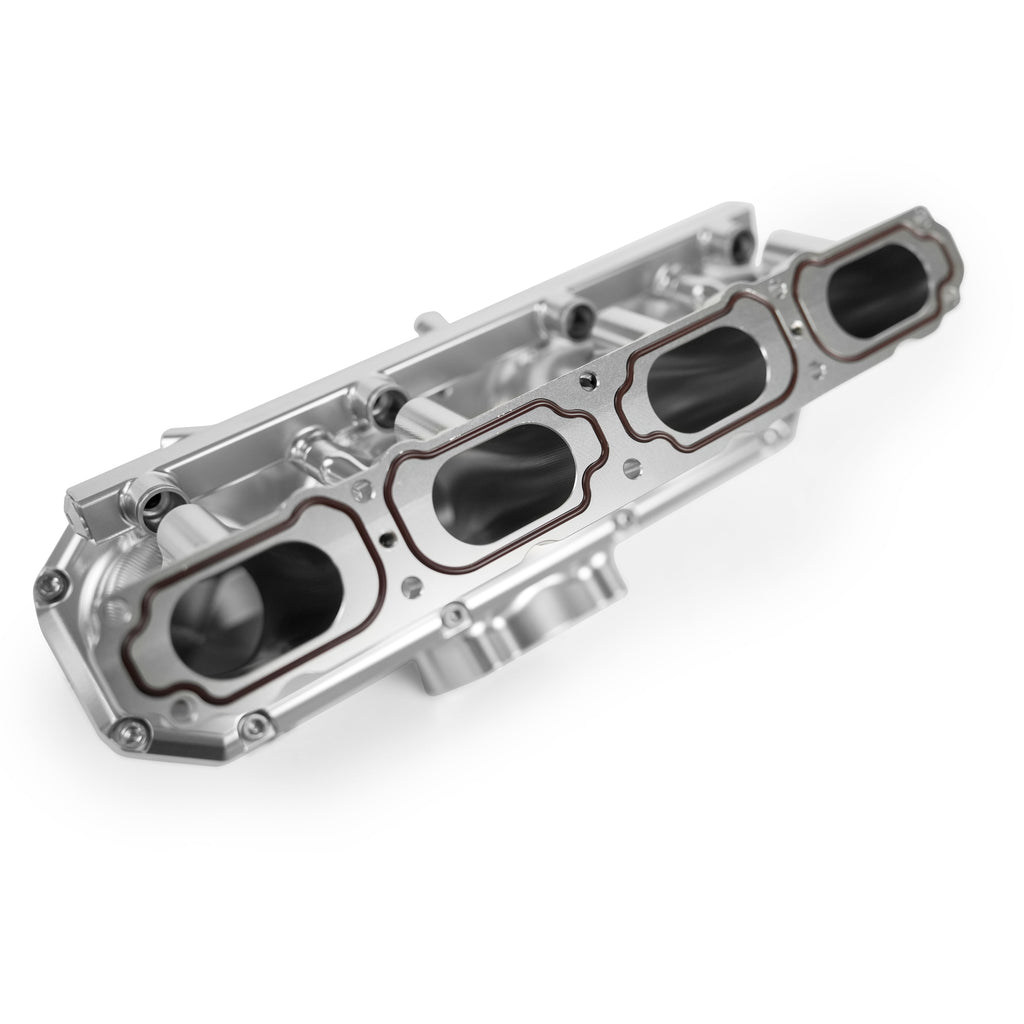

While the factory plastic manifold is prone to leaks and failure under high boost, the JDY-EA888-IM is engineered from a solid block of 6061-T6 Aluminum. Precision CNC-machined to perfection, this manifold provides the flow characteristics needed for Stage 3+ builds while ensuring rock-solid reliability.
Vehicle Fitment
-
Audi A3/S3 (8V/8Y): 2.0T 2014–Present
-
VW Golf GTI/R (MK7/MK7.5): 2.0T 2014–2020
-
VW Golf GTI/R (MK8): 2.0T 2020–2024
-
Fits both Gen 3 and Gen 4 EA888 engines.
Key Features & Improvements
1. Advanced Aerodynamics & Flow Dynamics
-
Venturi Effect Runners: Our runners feature a tapered "wide-to-narrow" design, utilizing the Venturi effect to increase intake air velocity.
-

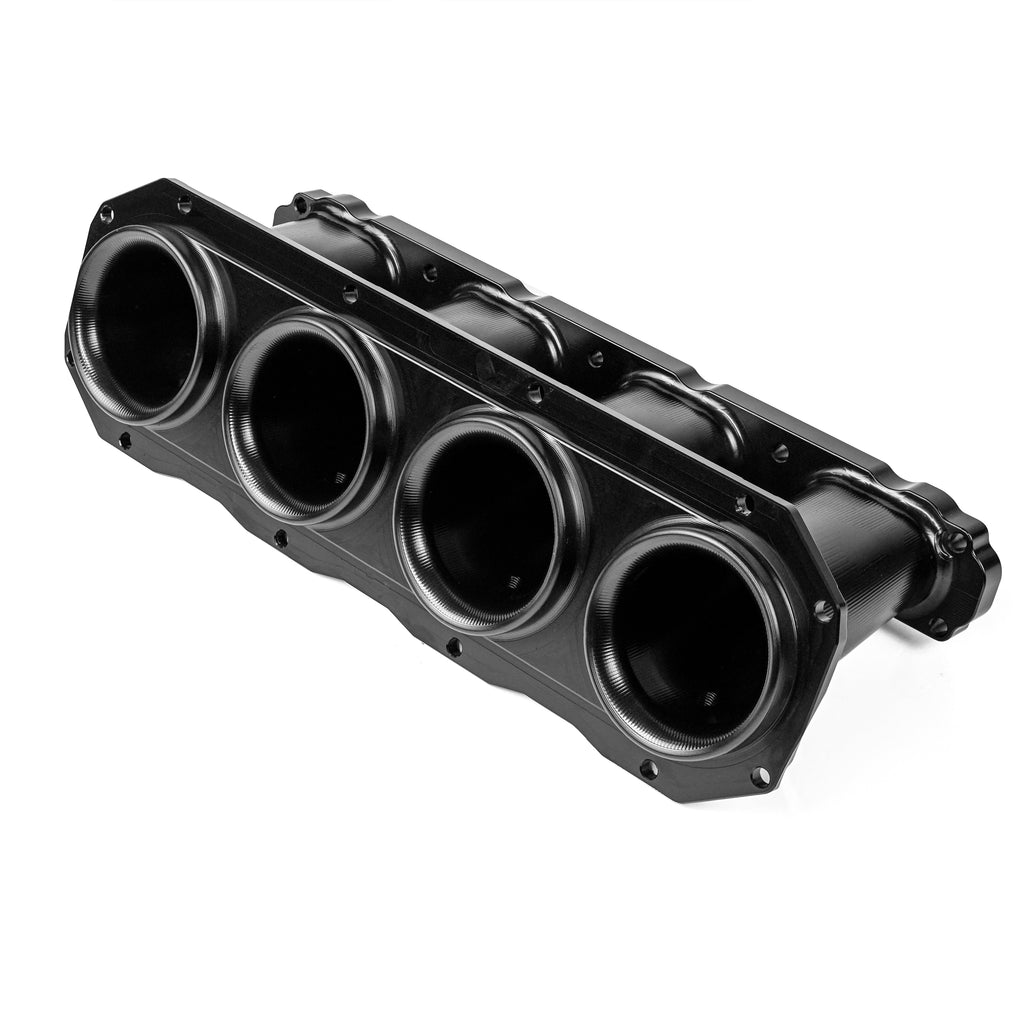

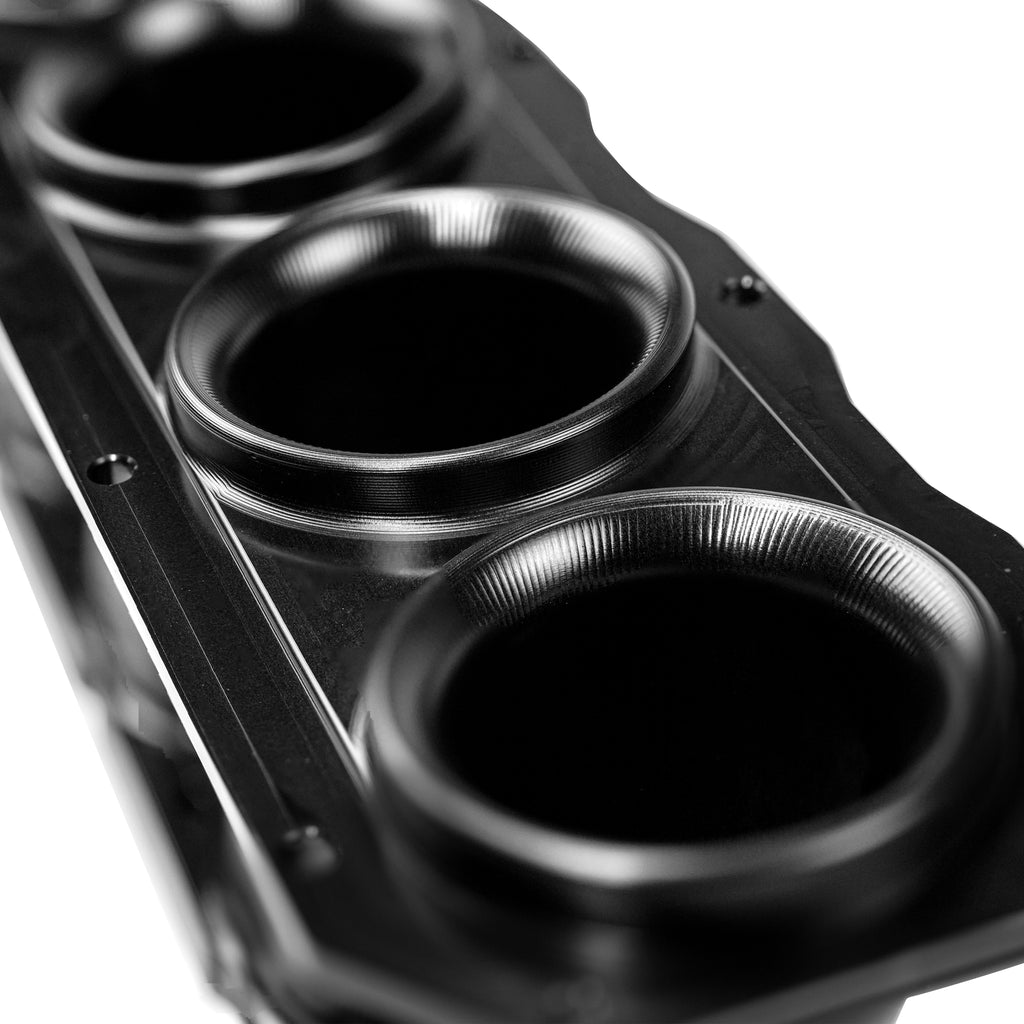

Velocity Stack Entries: The plenum features curved "bell-mouth" inlets to ensure smooth, laminar airflow into each cylinder, eliminating turbulence and ensuring equal air distribution.
-
Flow-Aligned CNC Path: Unlike standard machining, our tool paths follow the direction of airflow to minimize surface friction.
2. Built for Extreme Performance
-
Billet 6061-T6 Construction: One-piece CNC machining offers superior strength over cast or welded alternatives, making it capable of handling high-pressure scenarios without risk of cracking.
-

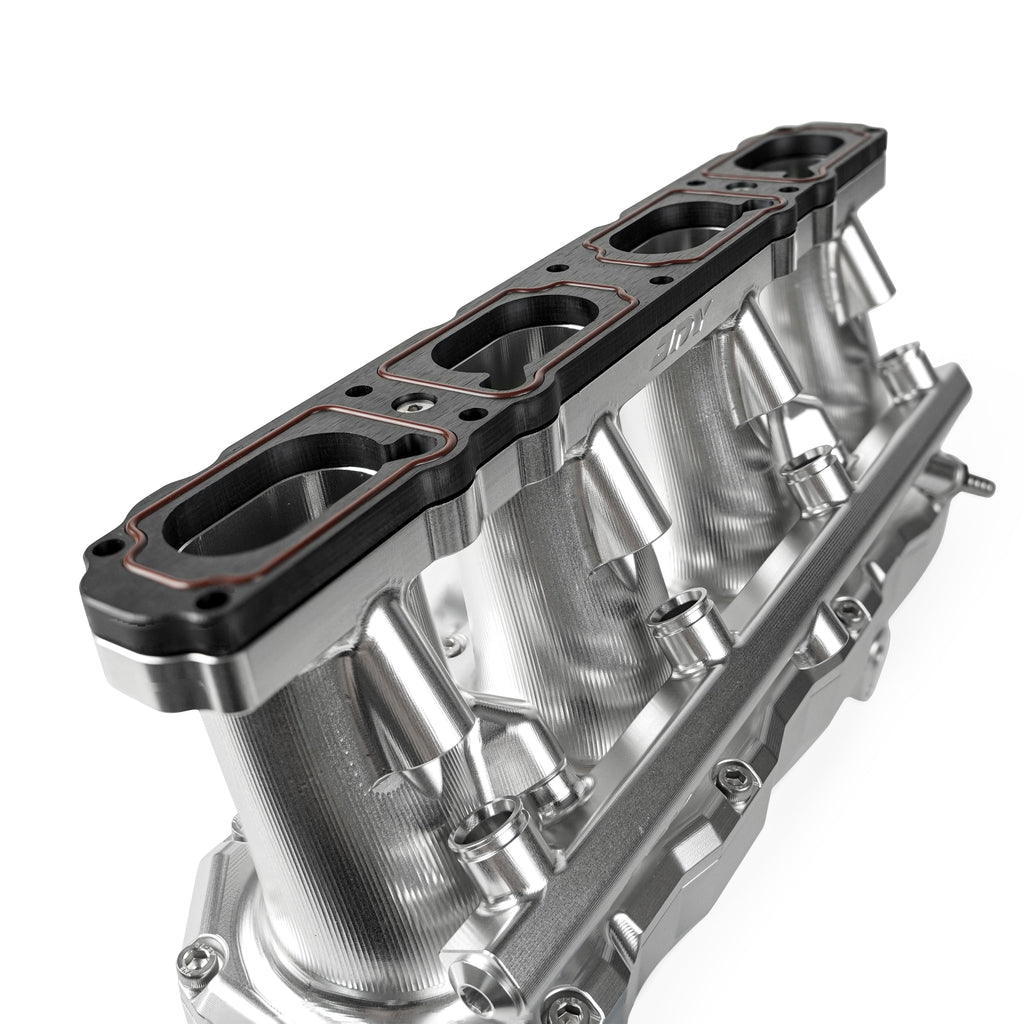

Thermal Management: Includes an 8mm thickened thermal gasket to insulate the manifold from cylinder head heat soak, keeping your intake temperatures (IATs) lower.
-
Expanded Plenum Volume: Re-engineered internal volume provides the "lung capacity" needed for high-RPM power delivery.
-
Runner flaps Delete : In orde rto reach maximum airflow capacity and reduce drag foraace as much as possible , JDY manifold deleted OEM runner flaps .
3. Integrated Solutions for Tuners
-
Water-Methanol Ready: 4x pre-tapped 1/8 NPT ports located on the top of the runners for easy access and optimal atomization.
-
Vacuum Reference Ports: 3x 1/8 NPT vacuum ports distributed across the plenum for clean routing of boost gauges, BOVs, or wastegate controllers.
-
Engineered Clearance: Revised lower structure to provide 100% clearance for high-pressure fuel rails—no more interference or rubbing.
4. Hybrid Fueling & MPI Ready (For Gen 4 Support)
-
MPI Integration for Gen 3/4: Many EA888 Gen 3/4 engines have eliminated Port Injection (MPI) due to emissions regulations. Our kit brings this capability back, allowing for the massive fueling demands of high-horsepower builds.
-

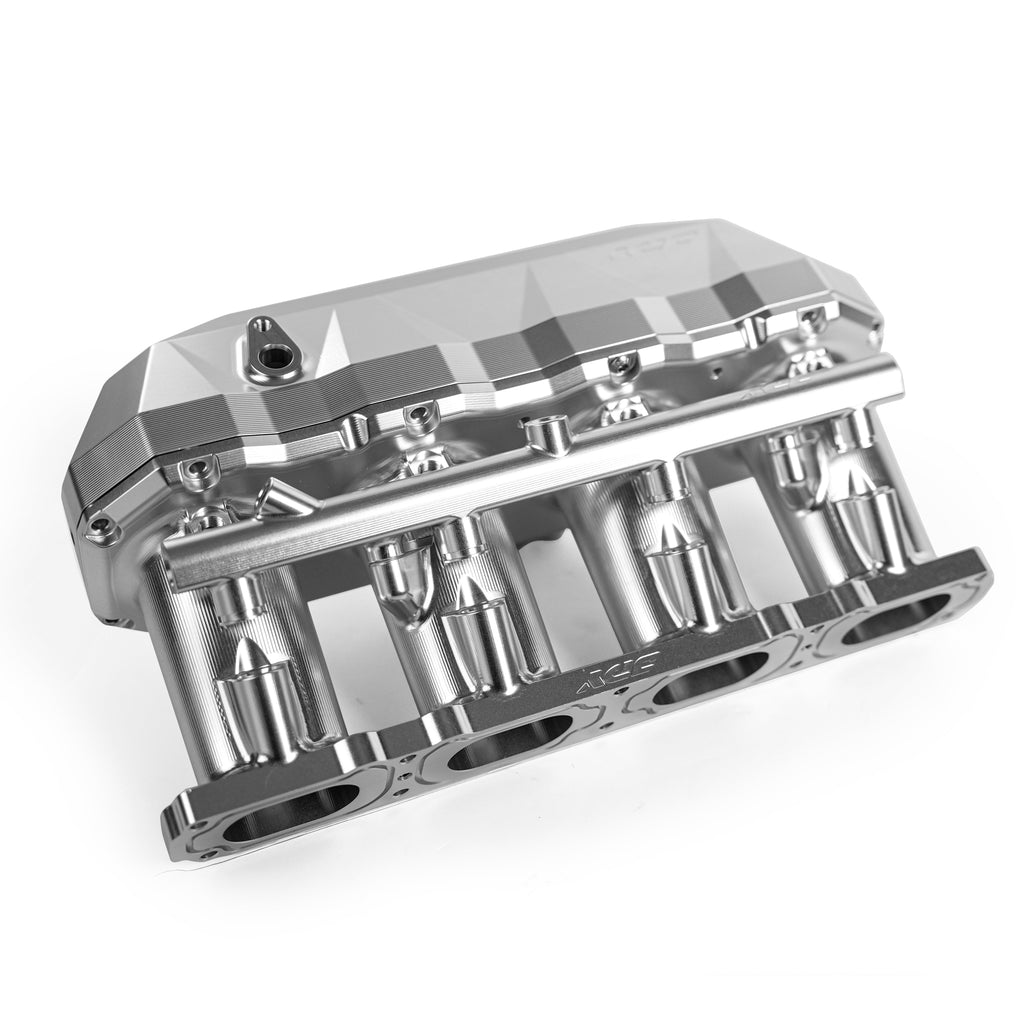

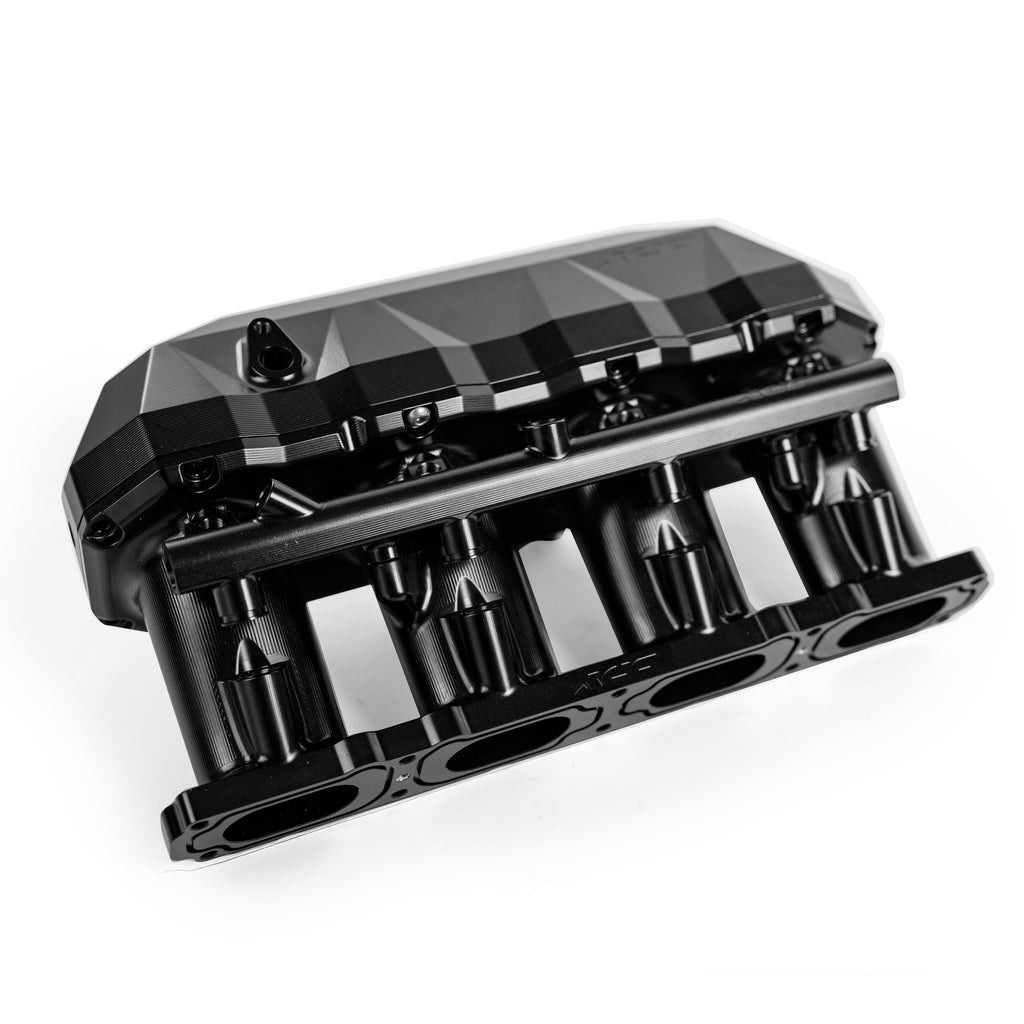

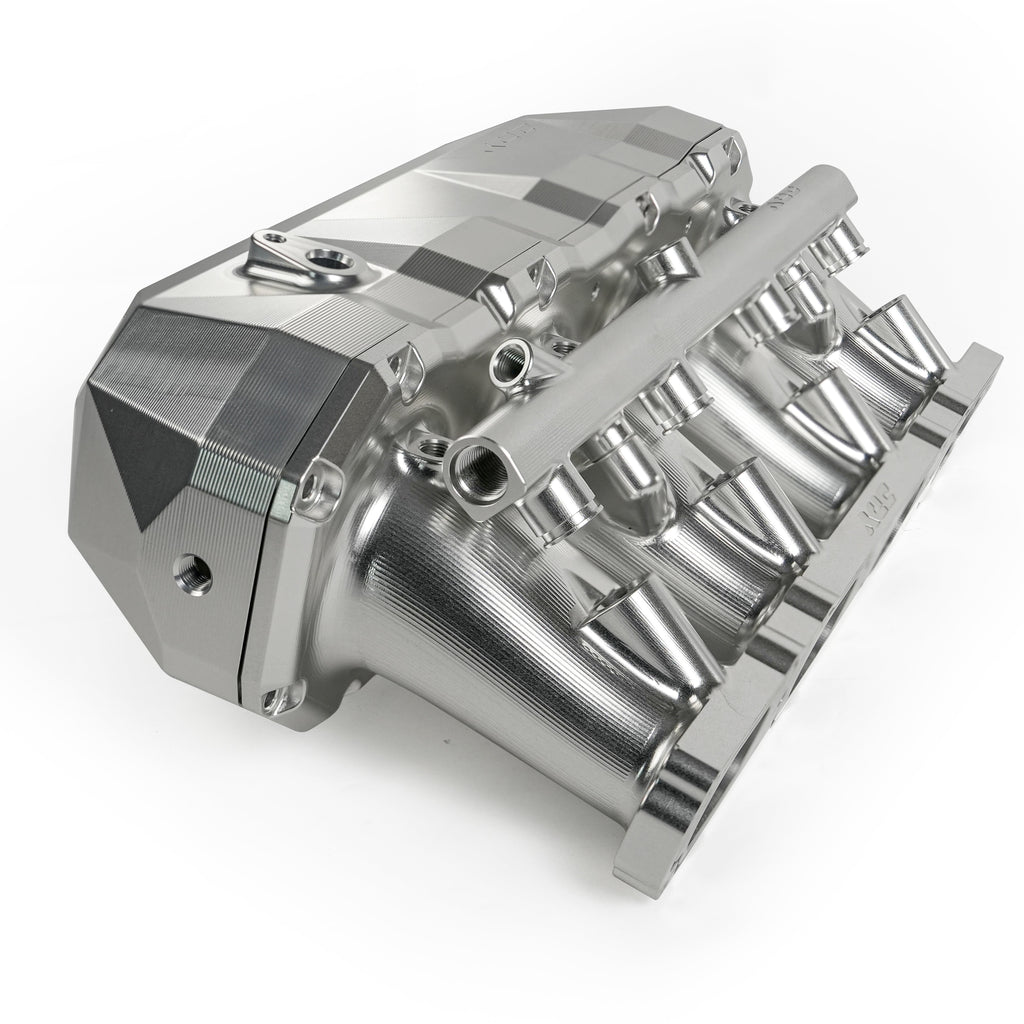

AN6 Billet Fuel Rail Included: Each kit comes with a high-flow, CNC-machined AN6 Billet Fuel Rail.
-
Versatile Fueling Setups: * Circulated Setup: Features AN6 ORB (O-Ring Boss) fittings on both ends, perfect for custom braided lines and high-flow fuel pressure regulators.
-
Precision Injector Seating: The fuel rail and manifold are matched to ensure perfect injector spray angles and a leak-free seal under high rail pressures.
5. Aesthetics & Fitment
-

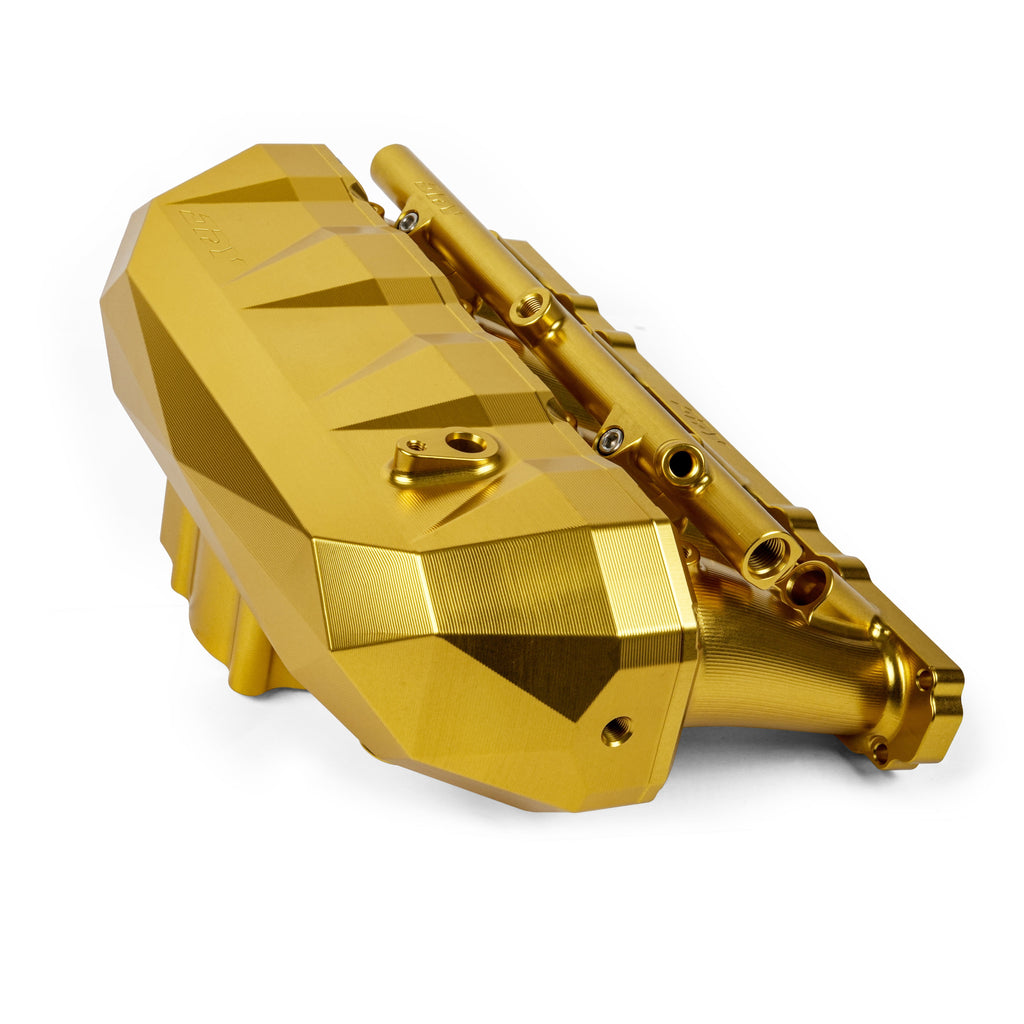

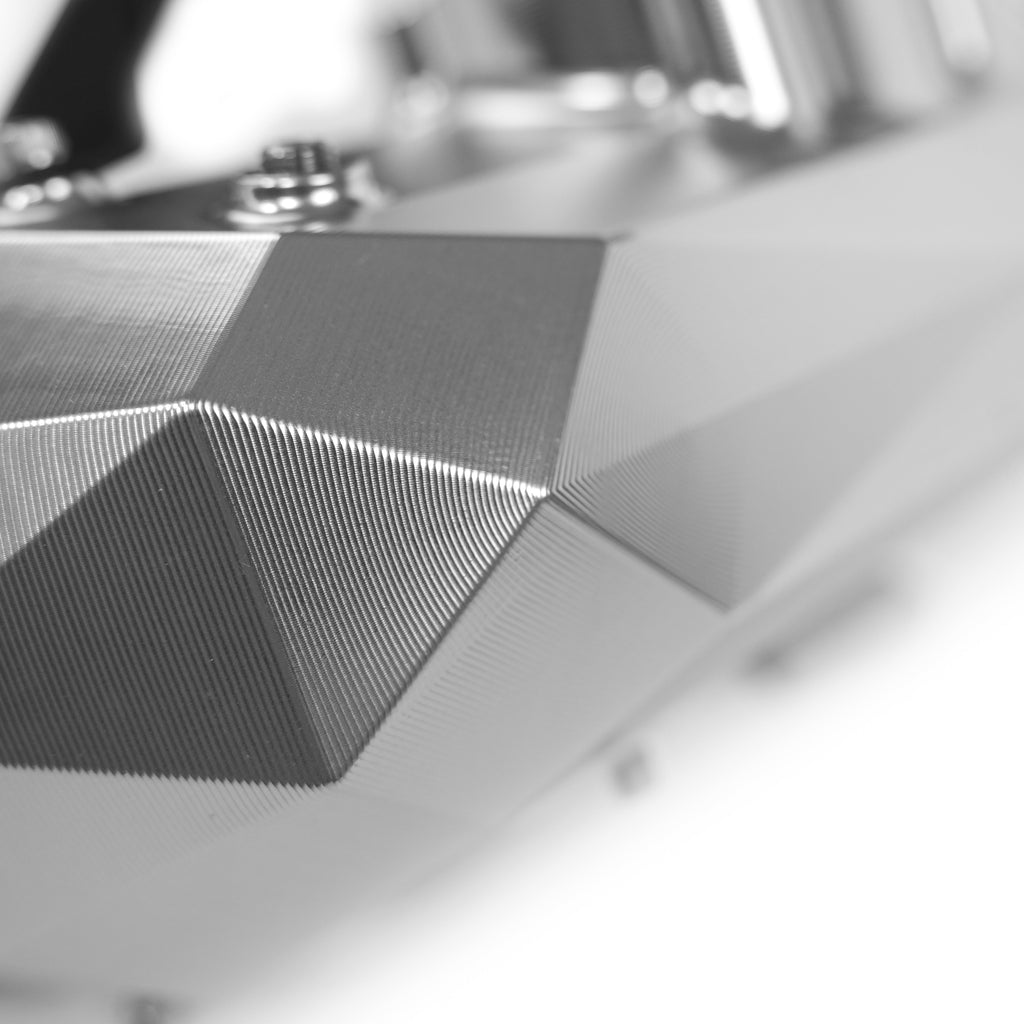

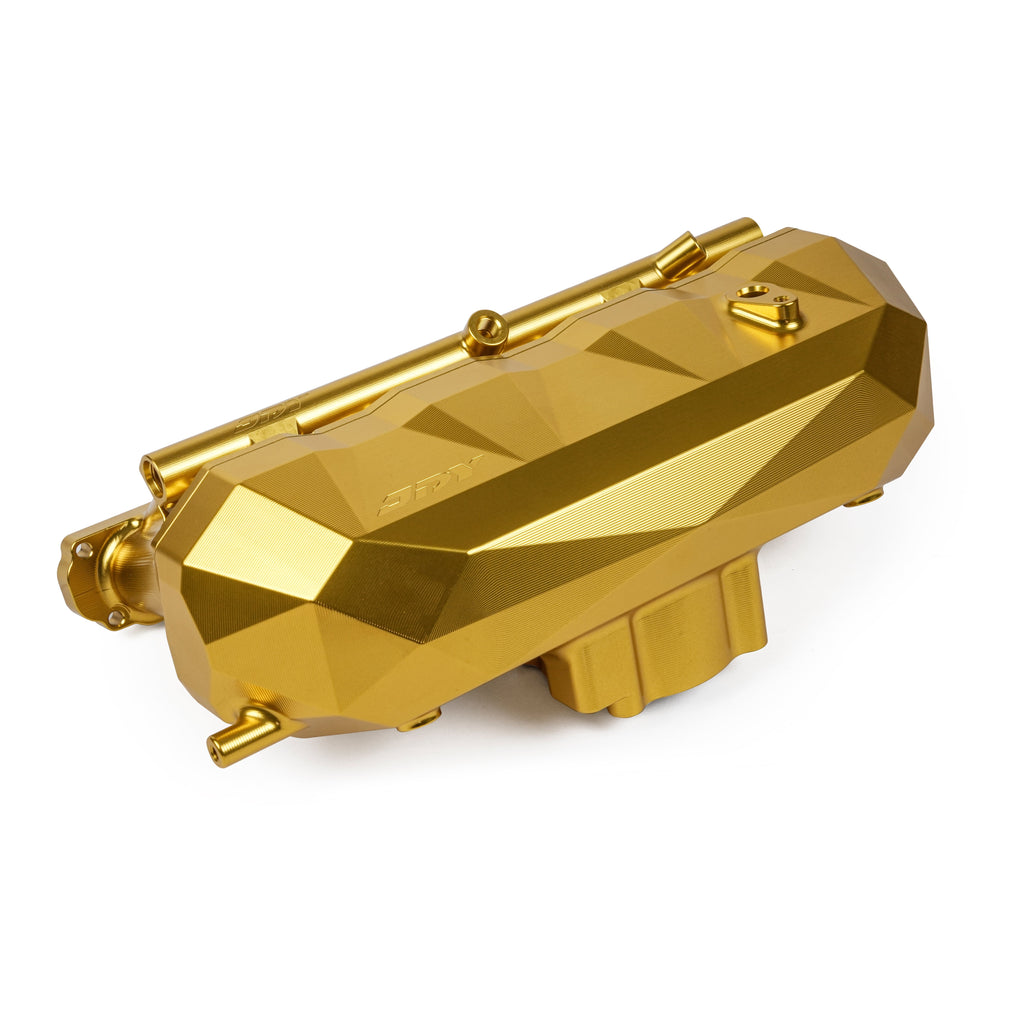

Diamond-Cut Styling: Features a sharp, aggressive "Diamond Cut" exterior design to transform your engine bay.
-

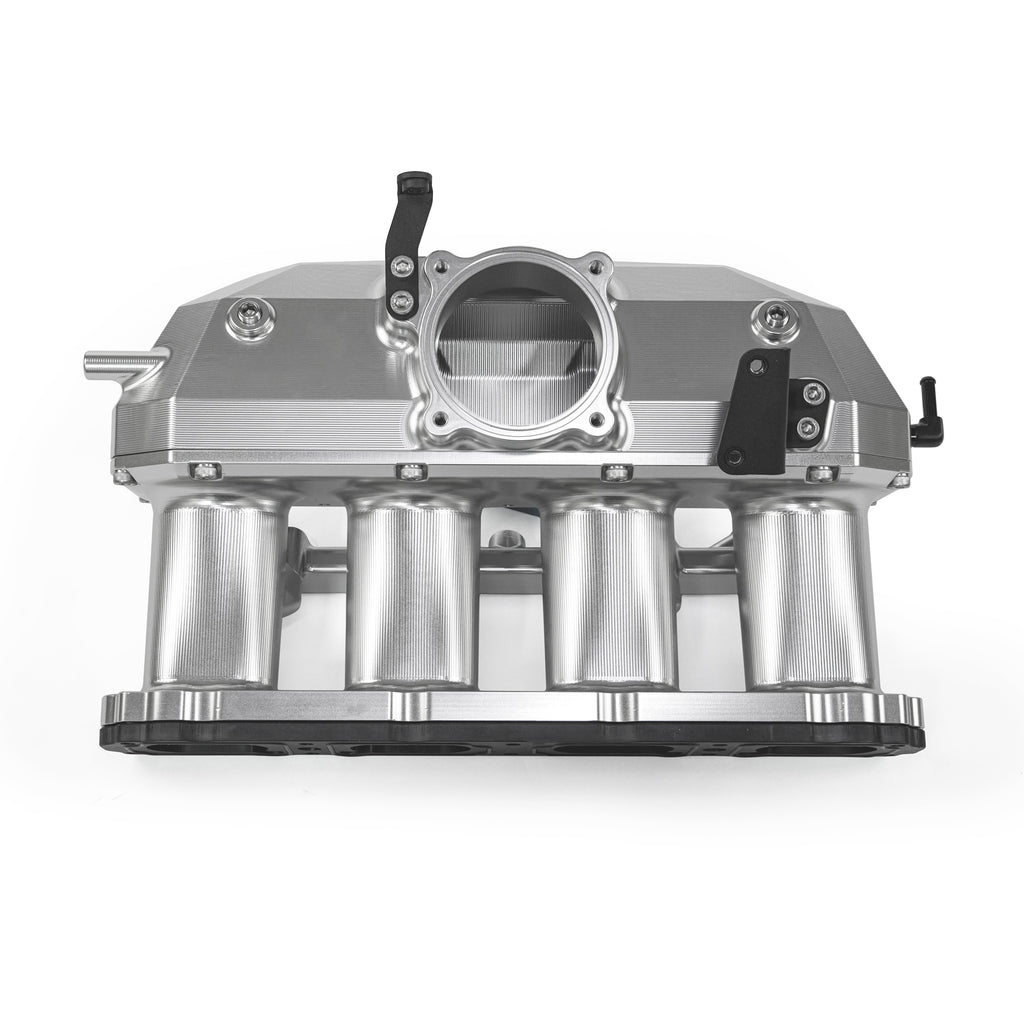

OEM Integration: Maintains factory PCV (Crankcase Ventilation) functionality and precise throttle body positioning for a "bolt-on" installation experience.
-

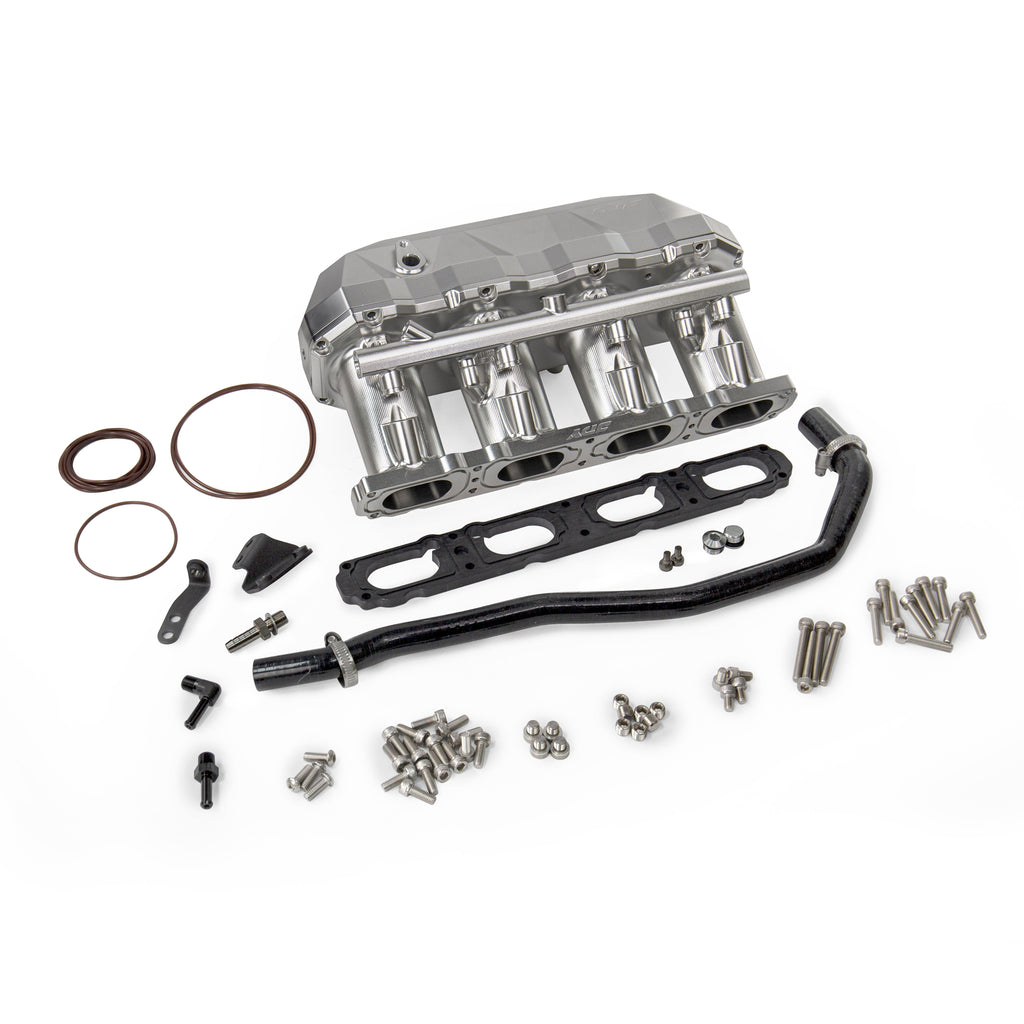

Installation Hardware: Includes custom coolant hoses and clamps to replace the bulky factory lines, freeing up space for the larger plenum.
Technical Specifications
instruciton :
https://cdn.shopify.com/s/files/1/0478/7060/7520/files/JDY_instruciton_gen3_4_manifold_250519.pdf?v=1779197347
