DESCRIPTION
There are a lot of good reasons to choose the Tri Foam filter. But what about the new Pleated Cotton filter?
First and foremost, it’s an extremely robust and very long-lasting filter with excellent flow characteristics and minimal initial pressure drop. Making it a great option, particularly for those owners who don’t want to commit to giving it the love and attention that Trifoam demands.

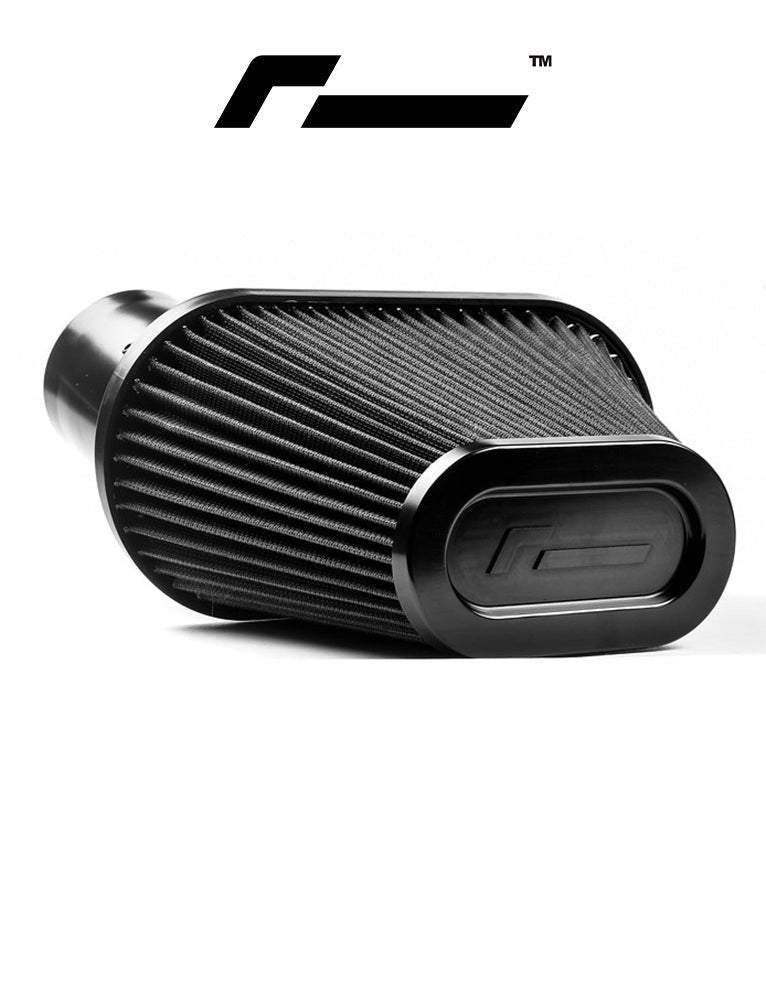

Ultimately, a filter’s performance is all about surface area. The deep pleats on RacingLine's cotton filter clearly increase the surface area whilst the epoxy coated mesh encapsulates the cotton with an incredibly durable outer layer.
It’s constructed from three layers of extremely fine-weave cotton, bound tightly top and bottom by the mesh. The material is then pleated and hand-formed into shape. By increasing surface area, these pleats increase its filtering ability and increase its dirt holding capacity. The mesh provides the support to stop the media get sucked into the engine and also makes for a durable outer layer to protect against larger debris.
When they are clean, both filters are almost identical in performance. The initial pressure drop figures RacingLine have recorded are just as good, and as far as power and torque are concerned the difference is near enough negligible.
You may now be thinking this is any easy choice for the Pleated Cotton.
However, as with everything in life, there is a compromise. Any Pleated Cotton Filter material will ultimately block up faster If you throw a lot of dirt quickly at the face of it (such as following another car along a dusty road). This dirt will start to accumulate on the surface of the filter, and gradually block up – eventually restricting engine power as the filter efficiency drops.
As dirt tries to pass through it, it first starts to build up at the bottom valley of the pleats, and slowly builds up towards the peaks. It’s not dangerous for your engine at all, as it’s still providing filtration. But gradually you may start to notice that performance is not what it once was – and that’s ideally the time to replace your filter unit (of course, we supply both types as filter-only, making this an easy serviceable item).
Remember how the Tri Foam filter does a much better job of capturing this dirt throughout its depth, still leaving a good path for the air to pass through efficiently? Basically, the Pleated Cotton gets restrictive earlier, whilst the foam remains very open.
There are other advantages to RacingLine's design of Pleated Cotton filter too. All the other cotton filters on the market tend to use a heavy PU clamp-on style design; RacingLine continue to use a giant air horn/ram pipe just as the Tri Foam design does – offering definite advantages over the competition. It marginally reduces weight and allows easy connection to either the factory turbo inlet hose pipework or to their silicone pipe upgrades with beautiful smooth airflow guaranteed.
So what’s the reason to choose the Pleated Cotton filter?
- Extremely robust and very long lasting
- Excellent flow characteristics when new
- No cleaning needed – fit and forget
- Giant surface area and air horn into the pipework
- Beautiful looking!
FEATURES
- Direct swap for existing kits – simple replacement for current customers
- Giant surface area – for best pleated Cotton Filter performance
- RacingLine's existing Tri Foam Filter still gives the very best filtration & airflow on the market, but as a high performance part it requires cleaning and re-oiling to keep the best performance
- Oiled cotton gauze materials means this Cotton Filter is a ‘fit and forget’ item
- All Cotton Filter materials will perform almost as well as our Trifoam when new, but will gradually loose airflow capacity over time as dust-loading occurs
Cleaning:
COTTON PLEATED FILTER:
* Inspection every 10,000 miles / 16,000 kms
* Replace (or service) every 40,000 miles / 60,000 kms
TRI FOAM FILTER:
* Visual inspection every 6 months
* Clean & Re Oil every 10,000 miles / 16,000 kms
THIS PRODUCT IS COMPATIBLE WITH THE FOLLOWING VEHICLES:
Year |
Make |
Model |
Engine |
Year |
Make |
Model |
Engine |
2013 - 2017 |
Volkswagen |
Golf (MK7) |
2.0 TURBO (EA888 GEN 3) - GTI |
2013 - 2017 |
Volkswagen |
Golf (MK7) |
2.0 TURBO (EA888 GEN 3) - GTI 40TH |
2013 - 2017 |
Volkswagen |
Golf (MK7) |
2.0 TURBO (EA888 GEN 3) - R |
2013 - 2017 |
Volkswagen |
Golf (MK7) |
2.0 TURBO (EA888 GEN 3) - WAGON |
2013 - 2018 |
Audi |
S3 (8V) |
2.0 TURBO (EA888 GEN 3) |
2013 - 2020 |
Skoda |
Octavia (5E) |
2.0 TURBO (EA888 GEN 3) |
2016 - 2017 |
Skoda |
Superb (3V) |
2.0 TURBO (EA888 GEN 3) |
2016 - 2018 |
Volkswagen |
Passat (B8) |
2.0 TURBO (EA888 GEN 3) |
2017 - 2019 |
Volkswagen |
Golf (MK7.5) |
2.0 TURBO (EA888 GEN 3) - R |
2018 - 2019 |
Volkswagen |
Golf (MK7.5) |
2.0 TURBO (EA888 GEN 3) - GTI |
2018 - 2019 |
Volkswagen |
Golf (MK7.5) |
2.0 TURBO (EA888 GEN 3) - R Wagon |
2019 - 2020 |
Skoda |
Octavia (5E) |
VRS 2.0T EVO Mk4 |
2019 |
Volkswagen |
Golf (MK7.5) |
GTI TCR |
2019 - 2020 |
Volkswagen |
Tiguan |
2.0 TURBO - 162KW |
2019 |
Volkswagen |
Tiguan |
2.0 TURBO – 132KW MAF |
2020 |
Audi |
S3 (8V) |
2.0 TURBO (EA888 GEN 3) |
2020 |
Volkswagen |
Tiguan |
2.0 TURBO - 132KW MAF |
2021 |
Audi |
S3 |
8Y 2.0TFSI |
2021 |
Volkswagen |
Golf 8 |
GTI 2.0TSI EA888.4 |
2021 |
Volkswagen |
Golf 8 |
GTI CLUBSPORT EA888.4 |
